F35
g3 Technology
GE's F35 GIS is a field-proven solution with high availability that meets the challenges of networks up to 170 kV for power generation, transmission, distribution, tertiary and heavy industry applications. The F35 is available in 72.5 kV, 145 kV and 170 kV ratings. GE’s F35 is also available SF6-free with g3-gas technology, see F35g

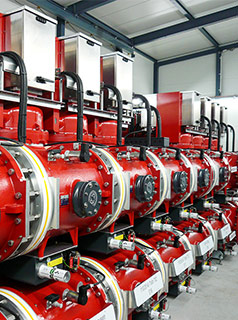

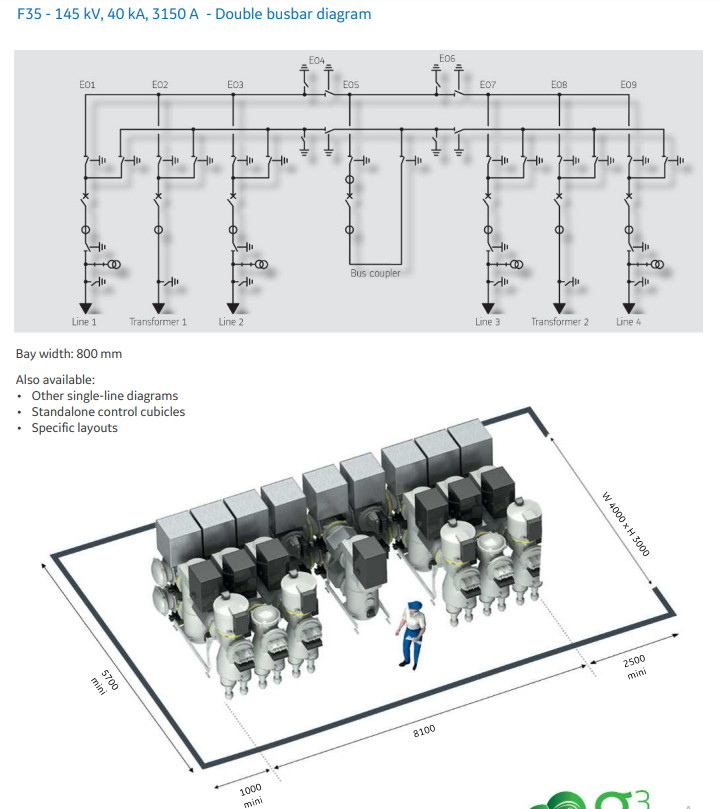

The F35 is a compact and accessible GIS solution, with a bay footprint below the market average. Up to 3 bays are assembled together, wired, tested and shipped enabling shorter site works. A whole F35-72,5 kV gas-insulated substation fits into the most advanced and powerful wind turbine towers, enabling them to handle more power while reducing energy losses.
In addition, the F35 is environmentally friendly and features an advanced SF6 sealing system. Full digital monitoring control and protection capabilities, and an optimized user interface enable the F35 to be readily integrated into the smart grid.

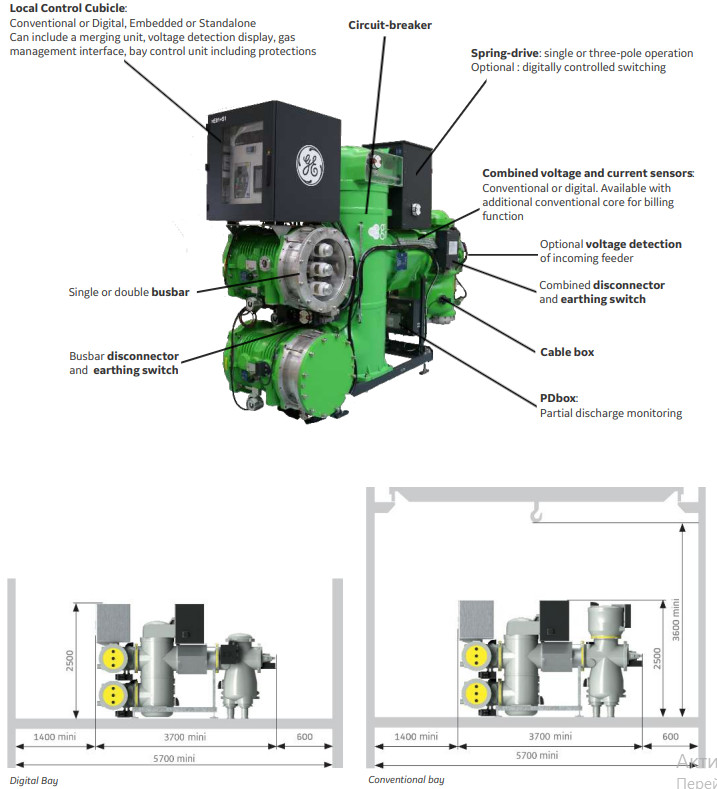

Main Characteristics
Environment friendliness
Low gas weight Advanced SF6 sealing system Smart grid features including full-digital monitoring, control and protection Available in g3 up to 145 kV High availability
One of the best experiences and high data reliability Current transformers outside SF6 Drives and accessories at easy reach Pure-spring circuit breaker drives Low costs of land and civil works
One of the most compact GIS with bay footprint up to 45% below market average depending on kV rating Up to 2 bays (145 kV), up to 3 bays (72.5 kV), and complete bays (170 kV) assembled, wired, tested and shipped Isolating device for voltage transformer / surge arrester Applicable for wind turbines at 72.5 kV
Handle more power while reducing energy losses A compact HV substation fits in the wind turbine Withstands harsh environments Short installation time
