Live tank circuit breaker

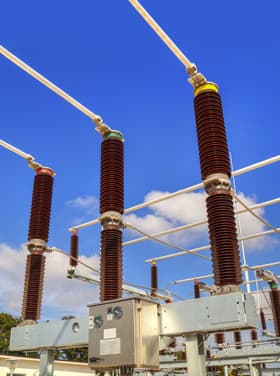

GE’s GL 308/309 live tank circuit breakers for overhead installations are equipped with third-generation self-exhaust switching chambers and spring actuators. The reliable connection chamber works on the principle of energy-optimized self-exhaust. Live tank circuit breakers provide customers with a high level of reliability, even in extremely difficult conditions and climates or in areas with high seismic activity.

The switches are pre-adjusted, filled with SF₆ and fully assembled at the factory before shipment. Thanks to this pre-assembly, no adjustments are necessary during installation and commissioning of the circuit breaker, allowing for quick and easy on-site installation with long maintenance intervals. Moreover, the switching compartment of the circuit breaker can be independently dismantled without dismantling the entire pole column.

Components

• Third generation self-blowing connection chamber.
• Pressure relief system for passive protection of substation and personnel.
• Reliable, temperature-compensated density meter with two-stage signaling and three-color indicator.
• Easy access to the SF₆ filling valve (DILO type).
• Non-return valve SF₆ on each pole.
• Protected opening springs inside each pole.
• Hot galvanized steel parts.
• Drive casing made entirely of aluminum.
• Reliable spring-loaded drives with position indication easily visible from the outside.

Options

• Larger phase distances available on request
• CBWatch3 monitoring system
• RPH3 (F3) controller

Installation and maintenance

• Factory adjustment before shipment, no adjustment during installation and commissioning.
• Pole units factory filled with SF₆ before shipment.
• Independent disassembly of the connection chamber without dismantling the entire pole column.
• Switch fully assembled before shipping.
• Three-pole circuit breakers: poles mounted on a base frame.
• Single pole circuit breakers: base frame with mounted and wired drives.

Testing

GE live tank circuit breakers have met the requirements of national and international standards. This has been confirmed by comprehensive testing based on the latest IEC standards.

Quality

The entire development and production procedures of our live tank circuit breakers are fully compliant with the latest quality standards ISO 9001, ISO 14001 and OHSAS 18001. This ensures the high quality of our products and services, which is confirmed by regular audits.
